Product description
JY350 is one of the widely used high-temperature liquid phase
synthetic heat transfer oil, it can be applied in the temperature range of -7 ℃~350℃
and has the following important properties:
High thermal stability—— JY350 is a liquid phase heat transfer oil for use in high temperatures, which can provide reliable operation for years even at a use temperature of 350 ℃. In fact, JY350has passed the 350℃ thermal stability test.
Good user reputation——JY350is one of the widely used high-temperature liquid phase synthesis heat transfer oils, highly recognized by customers.
Reliability——JY350is performing well in thousands of large-scale devices around the world. It is important to note that when a heat transfer oil system fails, the production line must stop operating, so do not choose heat transfer oils with unproven reliability. For a service temperature above 310℃,JY350is your reliable choice.
Anti-fouling——JY350has good performance in preventing the formation of solid particles and coke, ensuring more reliable operation of the heat transfer oil system.
Scope of application
JY350It has been widely used in the industrial field, such as: chemical fiber industry; petrochemical industry; plastic industry; oil industry
For more information about system design and application, pleaseE-mail us or contact our sales representative。
Typical characteristics
THERMINOL® 66

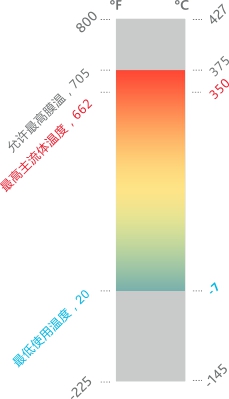

Temperature range: -7 ℃ ~350 ℃

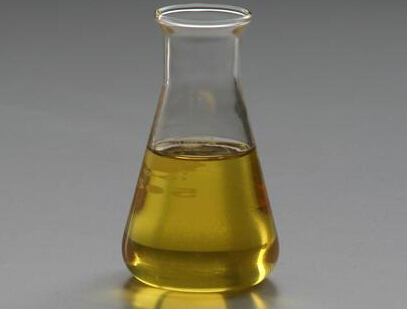

| Appearance | clear, pale yellow liquid |
| Component | Modified triphenyl |
| Water content | 150ppm |
| Flash point | 184 ℃ |
| ignition point | 212 ℃ |
| Autoignition point | 374 ℃ |
Dynamic viscosity
40 ℃
100 ℃ | 29.6mm2/s
3.8mm2/s |
| Density (25 ℃) | 1005kg/m3 |
| Specific gravity (20 ℃ /20 ℃) | 1.012 |
| Coefficient of thermal expansion (200 ℃ ) | 0.000819/ ℃ |
| Average molecular weight | 252 |
| Tipping point | -32 ℃ |
Pumpability
2000mm2/s
300mm2/s | -3 ℃
11 ℃ |
Minimum temperature for fully developed turbulent flow (Re=10000)
10 feet/second, 1 inch pipe
20 feet/second, 1 inch pipe | 72 degrees Celsius
53 degrees Celsius |
Lowest temperature in the transition zone of turbulent flow (Re=2000)
10 feet/second, 1 inch pipe
20 feet/second, 1 inch pipe | 35 degrees Celsius
26 degrees Celsius |
Distillation range
10%
90% | 348 degrees Celsius
392 degrees Celsius |
| Normal boiling point | 359 ℃ |
| Vaporization heat allowing the highest mainstream temperature of 345 ℃ | 272kJ/kg |
| Best fit | 0~350 ℃ |
| Permitted maximum film temperature | 375 ℃ |
| Critical temperature | 569 ℃ |
| Subcritical pressure | 24.3bar |
| Critical density | 317kg/m3 |
The above data is for reference only, and specific indicators should be referred to the "Organic Heat Transfer Fluid"GB 23971-2009 requirements.
For environmental protection, the health and safety of your employees and your product purchasers, you must make your own determination as to whether it is suitable for your application. The above does not constitute a recommendation of any infringement of patent of any product, process, equipment or formula, and we make no express or implied representation or warranty as to any infringement of patent by the use of this information.With regard to the data or the products involved in the data, we make no express or implied representation or warranty as to their merchantability, fitness for a particular purpose, or any other characteristic thereby resulting.The product safety data sheet provides safety precautions for the use and storage of our products, and you may obtain this information from us. You should obtain and read this safety information before using our products. If any non company product is mentioned on any material, you should also comply with the appropriate industrial hygiene and safety precautions recommended by the manufacturer of that product.
